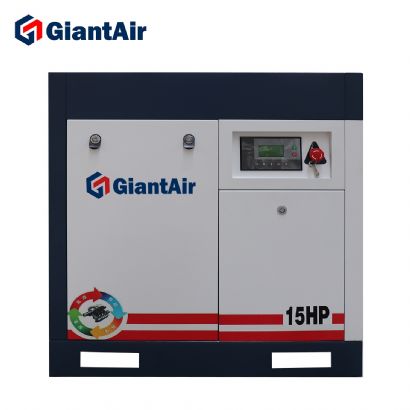

Our range of Belt Drive compressors is the customer friendly answer for a simple, but efficient supply of compressed air with the highest quality. Easy to install, extremely silent, customer friendly maintenance and with a small footprint for easy installation where space is limited
Advantages to our customers:
Belt Drive
• Efficient transmission of Power
• Easy Maintenance for changing the belt
• Double Protection for the motor
Big Air End
• Slow speed and therefore longer lifetime
• Lower temperature and therefore longer maintenance intervals
Long maintenance intervals
• Due to longer maintenance intervals for the exchange of oil filter, air filter and oil separation element, maintenance cost are reduced
Low noise lever, super noise isolation
• You can install this compressor almost anywhere due to the low noise level
TECHNICAL PARAMETERS
| MODEL | MAXIMUM WORKING PRESSURE | FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE | MOTOR | NOISE LEVEL** | AIR OUTLET DISCHARGE SIZE | WEIGHT | DIMENSIONS |
| Bar | PSI | l/s | m3/min | CFM | kW | HP | dBA | | KG | L X W X H
(mm) |
| GTB-5.5 | 8 | 116 | 10 | 0.60 | 21 | 4 | 5.5 | 63±2 | G3/4 | 190 | 820 x 730 x
880 |
| 10 | 145 | 7 | 0.42 | 15 |
| GTB-7.5 | 8 | 116 | 14 | 0.85 | 30 | 5.5 | 7.5 | 68±2 | G3/4 | 230 | 950 x 650 x
950 |
| 10 | 145 | 11 | 0.64 | 23 |
| GTB-10 | 8 | 116 | 17 | 1.00 | 36 | 7.5 | 10 | 72±3 | G3/4 | 295 | 950 x 650 x
950 |
| 10 | 145 | 15 | 0.90 | 32 |
| 13 | 189 | 12 | 0.70 | 25 |
| GTB-15 | 8 | 116 | 28 | 1.70 | 61 | 11 | 15 | 72±3 | G3/4 | 410 | 1000 x 830 x
1200 |
| 10 | 145 | 25 | 1.50 | 54 |
| 13 | 189 | 18 | 1.10 | 39 |
| GTB-20 | 8 | 116 | 37 | 2.20 | 79 | 15 | 20 | 72±3 | G3/4 | 420 | 1000 x 830 x
1200 |
| 10 | 145 | 30 | 1.80 | 64 |
| 13 | 189 | 23 | 1.40 | 50 |
| GTB-25 | 8 | 116 | 45 | 2.70 | 96 | 18.5 | 25 | 75±3 | G1 | 560 | 1150 x 950 x
1380 |
| 10 | 145 | 38 | 2.30 | 82 |
| 13 | 189 | 28 | 1.70 | 61 |
| GTB-30 | 8 | 116 | 53 | 3.20 | 114 | 22 | 30 | 75±3 | G1 | 580 | 1150 x 950 x
1380 |
| 10 | 145 | 48 | 2.90 | 104 |
| 13 | 189 | 33 | 2.00 | 71 |
| GTB-40 | 8 | 116 | 78 | 4.70 | 168 | 30 | 40 | 75±3 | G1 | 770 | 1280 x 1080 x
1480 |
| 10 | 145 | 72 | 4.30 | 154 |
| 13 | 189 | 58 | 3.50 | 125 |
| GTB-50 | 8 | 116 | 93 | 5.60 | 200 | 37 | 50 | 75±3 | G1 1/2 | 780 | 1280 x 1080 x
1480 |
| 10 | 145 | 80 | 4.80 | 171 |
| 13 | 189 | 63 | 3.80 | 136 |
| GTB-60 | 8 | 116 | 108 | 6.50 | 232 | 45 | 60 | 78±3 | G1 1/2 | 790 | 1280 x 1080 x
1480 |
| 10 | 145 | 87 | 5.20 | 186 |
| 13 | 189 | 75 | 4.50 | 161 |
| GTB-75 | 8 | 116 | 155 | 9.30 | 332 | 55 | 75 | 78±3 | G2 | 1440 | 1700 x 1400 x
1660 |
| 10 | 145 | 123 | 7.40 | 264 |
| 13 | 189 | 100 | 6.00 | 214 |
| GTB-100 | 8 | 116 | 200 | 12.00 | 429 | 45 | 60 | 78±3 | G2 | 1550 | 1700 x 1400 x
1660 |
| 10 | 145 | 178 | 10.70 | 382 |
| 13 | 189 | 148 | 8.90 | 318 |
