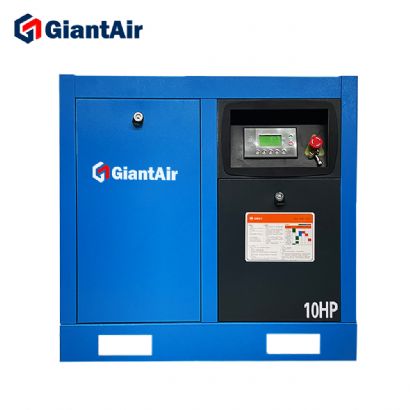

Our range of Direct Drive compressors designed for energy saving. So our customers can save energy and costs and do something good for the environment by saving our energy resources.
Advantages to our customers:
High energy transmission between motor and air end • An energy efficient compressor lowers your electricity bill Small footprint • Space-saving technology that also allows installation in confined spaces • Good accessibility for all service and maintenance work Lower maintenance costs • No need to exchange the belt and therefore lower maintenance costs • Longer life time of the air end due to lower radial forces on the bearings High reliability • No risk due to failure of belts Controller easy to handle, showing all necessary and important parameters on a clear display Good accessibility of compressor • Clear and structured design of compressor guarantees easy access from all directions Considerable reduction of noise emissions due to due to direct drive • Considerable lower investment costs due to no need of additional protection against noise Motors operate with low speed and big sized air ends resulting in long maintenance intervals and reduction of maintenance cost
TECHNICAL PARAMETERS
| MODEL | MAXIMUM WORKING PRESSURE | FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE | MOTOR | NOISE LEVEL** | AIR OUTLET DISCHARGE SIZE | WEIGHT | DIMENSIONS | | Bar | PSI | l/s | m3/min | CFM | kW | HP | dBA | | KG | L X W X H
(mm) | | GTA-5.5 | 8 | 116 | 10 | 0.60 | 21 | 4 | 5.5 | 63±2 | G3/4 | 190 | 820 x 730 x
880 | | 10 | 145 | 7 | 0.42 | 15 | | GTA-7.5 | 8 | 116 | 14 | 0.85 | 30 | 5.5 | 7.5 | 68±2 | G3/4 | 230 | 900 x 650 x 870 | | 10 | 145 | 11 | 0.64 | 23 | | GTA-10 | 8 | 116 | 18 | 1.10 | 39 | 7.5 | 10 | 68±3 | G3/4 | 205 | 900 x 650 x 870 | | 10 | 145 | 15 | 0.90 | 32 | | GTA-15 | 8 | 116 | 30 | 1.80 | 64 | 11 | 15 | 70±3 | G1 | 290 | 1120 x 750 x
980 | | 10 | 145 | 25 | 1.50 | 54 | | GTA-20 | 8 | 116 | 38 | 2.30 | 82 | 15 | 20 | 70±3 | G1 | 300 | 1120 x 750 x
980 | | 10 | 145 | 30 | 1.80 | 64 | | GTA-25 | 8 | 116 | 48 | 2.90 | 104 | 18.5 | 25 | 72±3 | G1 | 420 | 1300 x 920 x
1170 | | 10 | 145 | 38 | 2.30 | 82 | | GTA-30 | 8 | 116 | 55 | 3.30 | 118 | 22 | 30 | 72±3 | G1 | 440 | 1300 x 920 x
1170 | | 10 | 145 | 48 | 2.90 | 104 | | GTA-40 | 8 | 116 | 78 | 4.70 | 168 | 30 | 40 | 72±3 | G1 1/2 | 600 | 1460 x 1050 x
1250 | | 10 | 145 | 72 | 4.30 | 154 | | GTA-50 | 8 | 116 | 103 | 6.20 | 221 | 37 | 50 | 72±3 | G1 1/2 | 635 | 1460 x 1050 x
1250 | | 10 | 145 | 87 | 5.20 | 186 | | GTA-60 | 8 | 116 | 117 | 7.00 | 250 | 45 | 60 | 72±3 | G1 1/2 | 680 | 1460 x 1050 x
1250 | | 10 | 145 | 103 | 6.20 | 221 | | GTA-75 | 8 | 116 | 162 | 9.70 | 346 | 55 | 75 | 75±3 | G2 | 1095 | 1800 x 1250 x
1480 | | 10 | 145 | 123 | 7.40 | 264 | | GTA-100 | 8 | 116 | 210 | 12.60 | 450 | 75 | 100 | 75±3 | G2 | 1275 | 2000 x 1300 x
1630 | | 10 | 145 | 183 | 11.00 | 393 | | GTA-125 | 8 | 116 | 258 | 15.50 | 554 | 90 | 125 | 75±3 | G2 | 2480 | 2000 x 1540 x
1800 | | 10 | 145 | 208 | 12.50 | 446 | | GTA-150 | 8 | 116 | 325 | 19.50 | 696 | 110 | 150 | 83±3 | DN65 | 2570 | 3000 x 1550 x
1800 | | 10 | 145 | 267 | 16.00 | 571 | | GTA-175 | 8 | 116 | 372 | 22.30 | 796 | 132 | 175 | 83±3 | DN65 | 2770 | 3000 x 1550 x
1800 | | 10 | 145 | 325 | 19.50 | 696 | | GTA-250 | 8 | 116 | 458 | 27.50 | 982 | 160 | 250 | 85±3 | DN80 | 2900 | 3500 x 1900 x
2000 | | 10 | 145 | 405 | 24.30 | 868 | | GTB-350 | 8 | 116 | 700 | 42.00 | 1500 | 250 | 350 | 87±3 | DN100 | 5600 | 3600 x 2000 x
2050 | | 10 | 145 | 625 | 37.50 | 1339 |
 |
