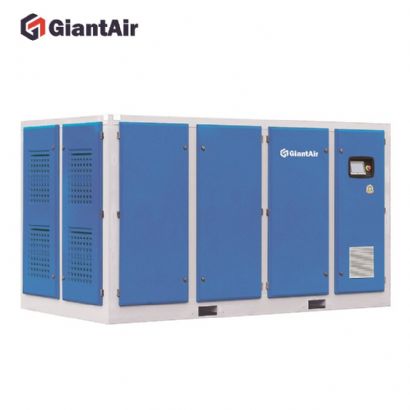

Two Stage Screw Air Compressor
分享：
Two Stage Screw Air Compressor
Screw Air Compressor
Hits： 188            Online： contact seller
Hits： 188
Time： 2022-7-4
Online： contact seller
Contact by skypeSkype
Contact by msnMSN
－Return goods service
  return policy


－sellout 0 remarks: 0

TWO-STAGE PM VSD COMPRESSION- HELP TO SAVE MORE



Advantages to our customers:



·Ultra-low temperature rise design

·Closed-loop vector control system

·Stable and accurately controlled within 0.1 bar.

·Energy Saving 20-30%.




Premium energy-saving motor, fully enclosed PM motor, high loading capacity, high efficiency, high power factor.

High efficiency two-stage screw compressor, super high efficiency two-stage screw compressor, low speed, low noise, higher capacity, longer& stable reliability.

Intelligent control system, all operating just by fingers, operation convenience, more information, quick correct fault diagnosis.

Oil-Separator system: High efficiency of oil-separator system, Low-oil carry over separation, Easy maintenance cartridge type separator, all maintenance available as with open front panel.


 Technical Parameter:


MODELMAXIMUM WORKING PRESSUREFREE AIR DELIVERY* OF UNIT AT WORKING PRESSUREMOTORNOISE LEVEL**AIR OUTLET DISCHARGE SIZE WEIGHTDIMENSIONS
BarPSIl/sm3/minCFMkWHPdBAKGL X W X H
(mm)
GTS-30PM8116 68 4.10 146 223066±2G1 1/27501580 x 950 x
1430
10145 62 3.70 132
13189 50 3.00 107
GTS-40PM8116 100 6.00 214 304066±2G1 1/27501580 x 950 x
1430
10145 90 5.40 193
13189 75 4.50 161
GTS-50PM8116 120 7.20 257 375068±2G1 1/28001580 x 1080 x
1330
10145 108 6.50 232
13189 87 5.20 186
GTS-60PM8116 160 9.60 343 456070±2G215002000 x 1250 x
1680
10145 143 8.60 307
13189 117 7.00 250
GTS-75PM8116 205 12.30 439 557570±2G215002000 x 1250 x
1680
10145 185 11.10 396
13189 148 8.90 318
GTS-100PM8116 275 16.50 589 7510070±2G216002000 x 1250 x
1880
10145 250 15.00 536
13189 200 12.00 429
GTS-125PM8116 320 19.20 686 9012572±2G224502400 x 1450 x
2030
10145 308 18.50 661
13189 292 17.50 625
GTS-150PM8116 387 23.20 829 11015072±2G2 1/225002400 x 1450 x
2030
10145 350 21.00 750
13189 280 16.80 600
GTS-175PM8116 462 27.70 989 13217575±2G330003000 x 1580 x
2150
10145 417 25.00 893
13189 333 20.00 714
GTS-200PM8116 560 33.60 1200 16020075±2G332003000 x 1580 x
2150
10145 508 30.50 1089
13189 458 27.50 982
GTS-250PM8116 643 38.60 1379 18525078±2DN10042004000 x 2100 x
2400
10145 583 35.00 1250
13189 467 28.00 1000
GTS-270PM8116 720 43.20 1543 20027078±2DN10043004000 x 2100 x
2400
10145 650 39.00 1393
13189 525 31.50 1125
GTS-300PM8116 783 47.00 1679 22030078±2DN10044004200 x 2200 x
2500
10145 708 42.50 1518
13189 567 34.00 1214
GTS-350PM8116 900 54.00 1929 25535078±2DN12545004200 x 2200 x
2500
10145 808 48.50 1732
13189 650 39.00 1393
GTS-380PM8116 1000 60.00 2143 28538078±2DN12550004500 x 2500 x
2500
10145 900 54.00 1929
13189 725 43.50 1554
